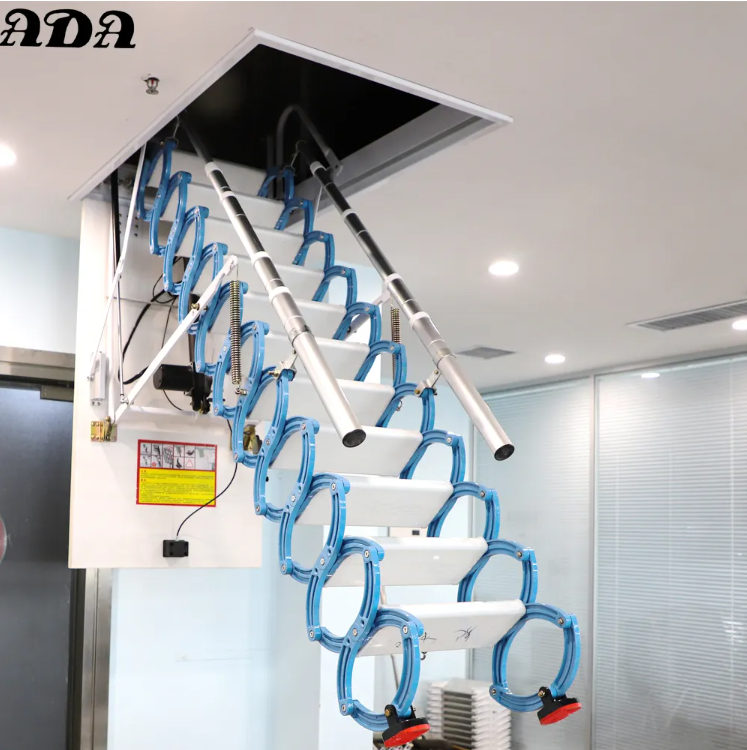

Manual Automatic Integration Remote Control Motorized Electrical Automatic Attic Ladders are mainly used for lofts, garages, basements, courtyards, warehouses, etc..., where space is limited.

The operation can be performed using either a remote control or manually. Additionally, we offer a wall switch option for customers upon request.

Key features:

Innovative Design: Our motorized attic access ladder features a durable S-Bent Finishing Skeleton with stainless steel thicken rivets, supporting up to 660 lbs.
High-Quality Materials: Crafted from Forged Aluminium Alloy, the bracket and tread are wear and rust-resistant, ensuring longevity.
Efficient Space Utilization: The retractable structure powered by galvanized Mn-steel springs saves space when not in use.
Motorized Operation: An all-metal motor enables fully automatic opening and closing via remote control for effortless access.
Safety and Comfort: Two handrails, anti-skid rubber pads, and widened anti-skid pedals prioritize user safety and stability.
Easy Installation: The wall-mounted design allows for direct installation on the vertical wall next to the ceiling opening.
Versatile Applications: Suitable for attics, lofts, garages, basements, and more, both indoors and outdoors.
Dual Modes: Seamlessly switch between manual and electric modes, ensuring uninterrupted usage during power outages.

Electric Ladder Design:

Our electric ladder features automatic integration, controlled by a remote. In cases of power outage or motor failure, it seamlessly switches to manual mode. This unique design is exclusive to our factory.

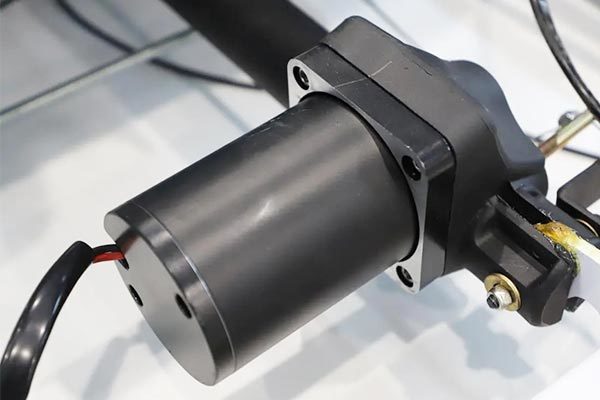

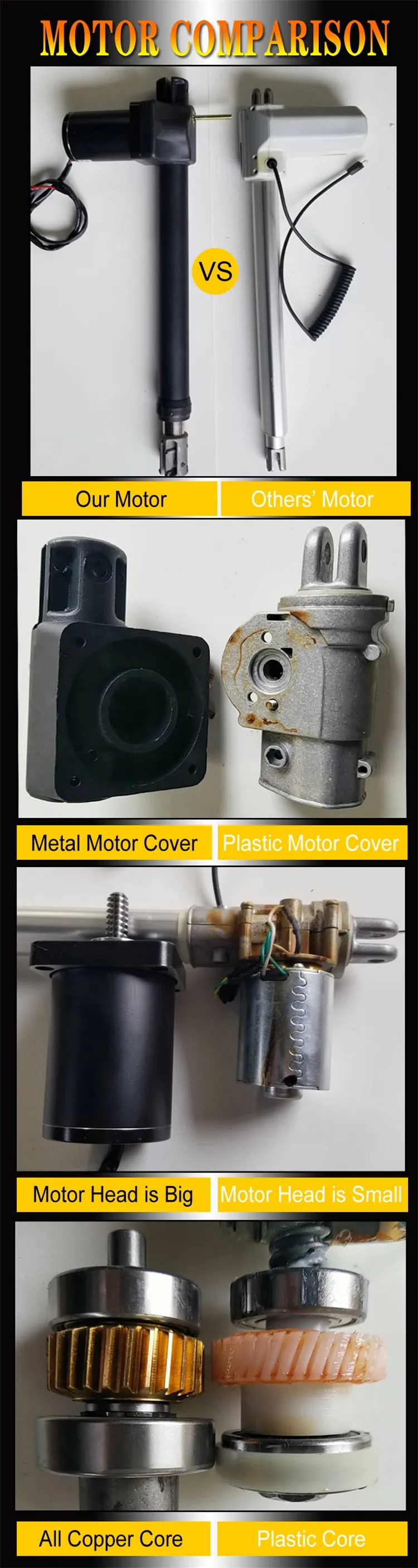

Motor: 150W customized motor for attic ladders. 2000rpm

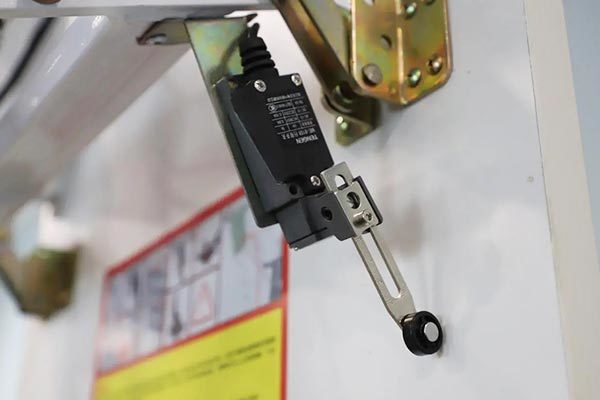

Limit Switch: Customers need to adjust this switch if the real height is different with the height they ordered.

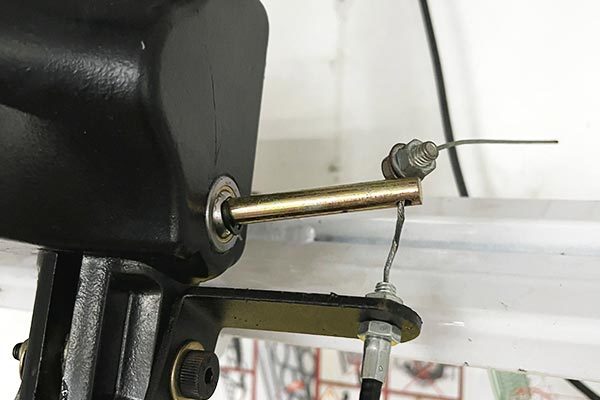

Clutch Lever: Electric and Manual Mode switch, protect the motor when electric mode, the clutch is tip-tilted when electric mode

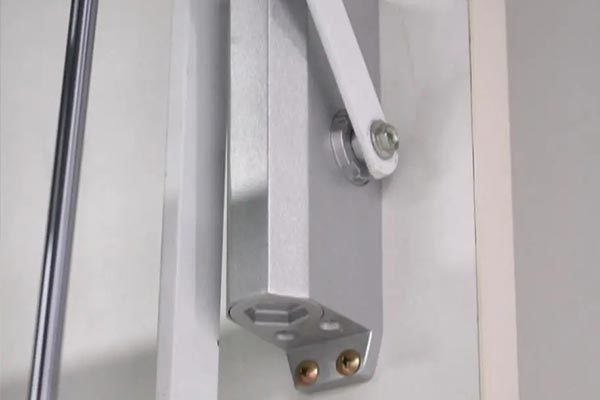

Door Opening Buffer: Customized buffer makes the door open gently

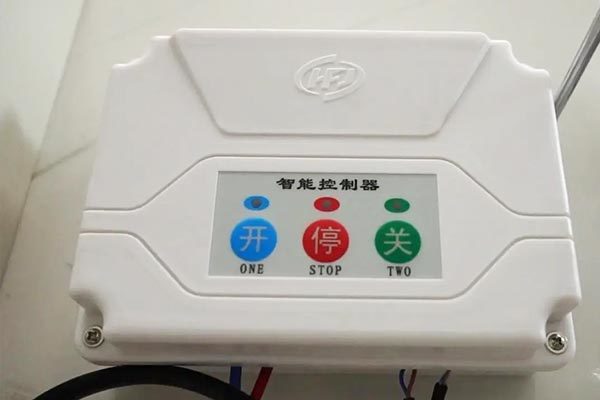

Control Box: There are 3 buttons on it to control open, close and stop.

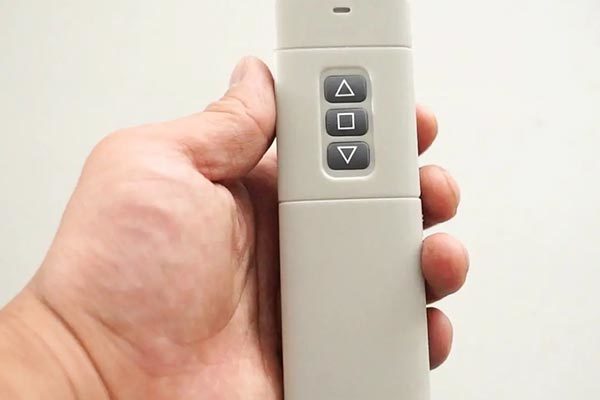

Remote Control: 2 Remote controls for one attic ladder, one use downstairs and one use upstairs.

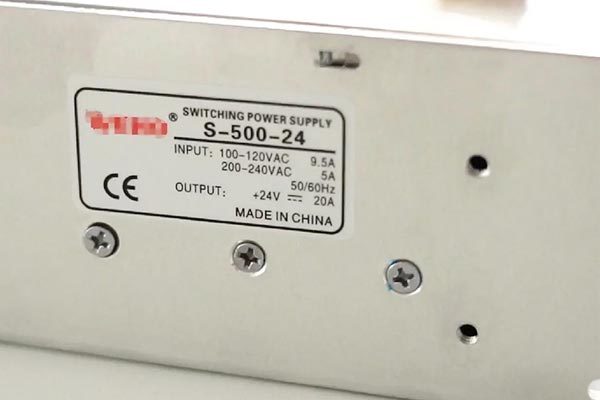

Power Box: Output Voltage:24V DC Electricity: 5A-17A

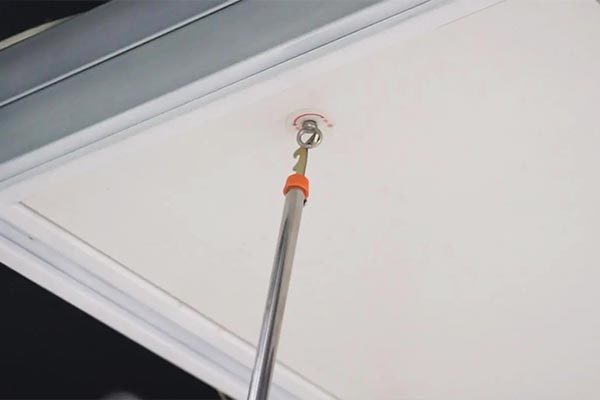

Switch on the door: Rotate the ring on the door to switch manual mode or electric mode

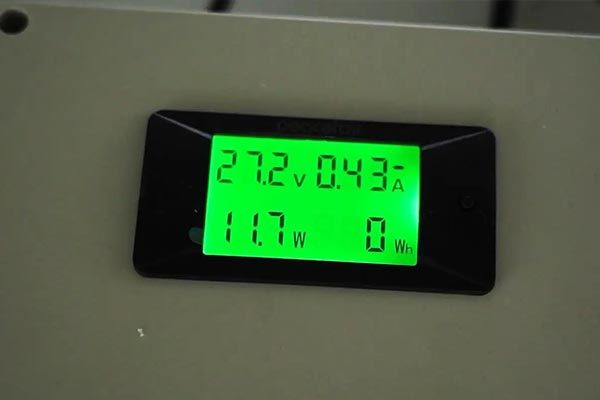

LED Screen: optional not standard, customer can choose with extra cost.

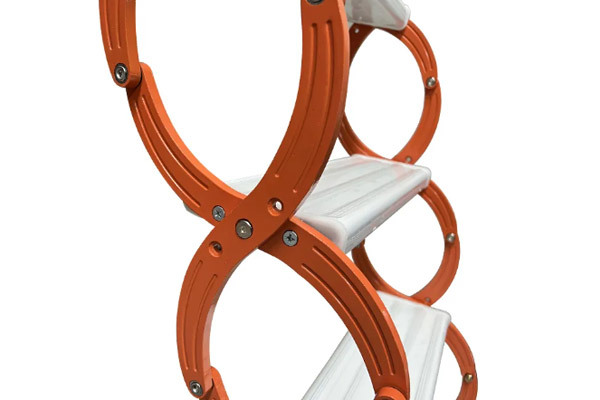

The Sides material is forged aluminum alloy(titanium magnesium alloy), thickness is 1.1cm solid material. Which will not break.

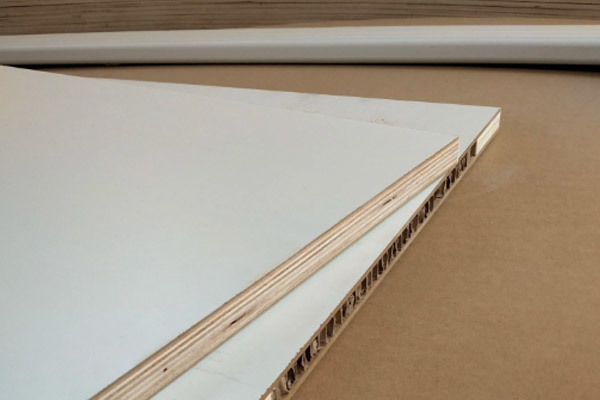

Solid Door Panel: The door panel is solid instead of hollow, which makes the door stronger and not easy to deform.

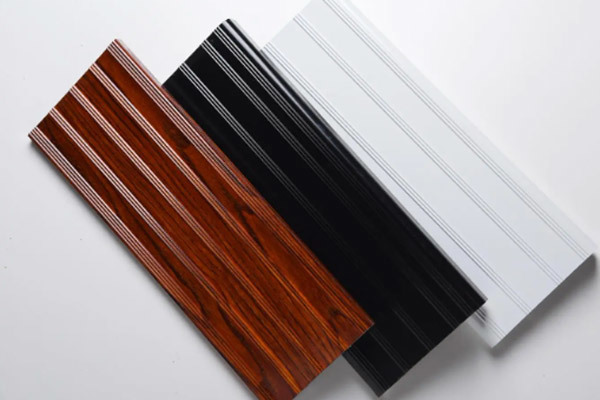

Step Colors: Three colors for the steps.

Technical Information:

Warranty:	1 Year	Weight Capacity:	300KGS
After-sale Service:	Online technical support, Free spare parts	Project Solution Capability:	total solution for projects
Application:	ATTIC	Design Style:	Modern
Place of Origin:	Henan, China	Brand Name:	ADA
Model Number:	Electric	Material:	Forged Aluminium Alloy
Feature:	Folding Ladders, Manual Automatic Integration	Type:	Domestic Ladders
Structure:	Attic Ladders	Product Name:	Remote Control Motorized Electrical Automatic Attic Ladder
Sides Material:	Forged Aluminium Alloy	Thickness of Sides:	1.1cm
Applicable Ceiling Height:	Under 3.25 Meters	Hole Size On Ceiling:	Width within 80cm, Length within 120cm
Step Number:	Depends on the Ceiling Height	Step Size:	40cm width, 14cm depth
Step Material:	Aluminium Profile, double layers	Hand Railings:	Alternative

CAD drawing:

Delivery information:

Supply Ability	1000 Set/Sets per Month
Packaging	Our standard packaging for Step Ladder Wall Mounted, Aluminium Wall Mounted Retractable Outdoor Ladders will be wooden cases with poly foam. The wood box material is plywood, and it is fumigation-free. Packing size is based on hole sizes. Packing for Step Ladder Wall Mounted, Aluminium Wall Mounted Retractable Outdoor Ladder can be customized based on the customer's requirements.
Delivery	Tianjin, Qingdao, Shanghai

Lead Time:

Quantity(sets)	1 - 10	>10
Lead time (days)	3	To be negotiated

Customization Notes:

If the attic opening size is not our standard size, we provide customization service for a 1 square meter area opening. Requirements as below:

1. Measurements of the opening length, width, and thickness.
2. Vertical height from the ground floor to the ceiling. Normally, the highest height we can customize is 3.5m.
3. Let us know if the opening is near the wall or not.

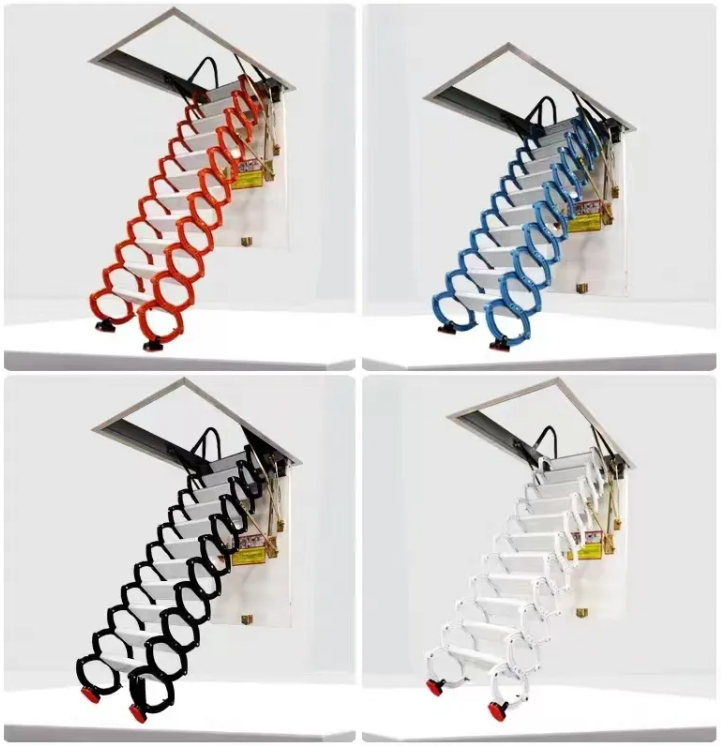

Product Color Display:

There are four colors for the titanium magnesium alloy electric ladder, blue, black, orange, and white. Customers can choose the color based on home decoration style.
